DigiSense

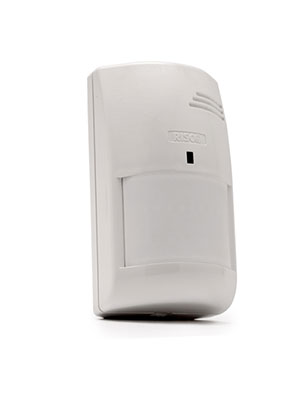

DigiSense™ – Série de Détecteurs Numériques
Le DigiSense™ est le choix idéal pour les installations commerciales et résidentielles. Basé sur les technologies de détection avancées de RISCO Group, le DigiSenseTM est conçu pour assurer une bonne détection tout en limitant les fausses alarmes.
Grâce à leurs boîtiers identiques et compactes, l’installateur peut mixer les différentes technologies de la série DigiSenseTM sur une même installation, tout en gardant une harmonie esthétique.
Fonctionnalités
- 15m (50’) coverage, 12m (40’) for pet friendly models
- Microprocessor-based Digital Signal Processing
- Built-in EOL resistors
- True Temperature Compensation
- Ample wiring space for easy installation
- Free swivel provided with PIR & Quad models
- Variable Pet Threshold (VPT™) in Pet Friendly models
- DT models include Tri-colour LED for easy walk test and anti-fluorescent interference signal processing
- Optional corridor and curtain lenses
- Model names:
- RK415DT DigiSense DT
- RK415DTQ DigiSense DT Quad
- RK412DTPT DigiSense DT Pet
- RK415DTAM DigiSense DT “OR” Logic
- RK415PR DigiSense PIR
- RK415PQ DigiSense QUAD
- RK412PT DigiSense PIR Pet
- LLPL02 DigiSense Corridor lens* 20m x 6°
- LLPL03 DigiSense Curtain lens* 15m x 6°
- RA90 Ceiling swivel for DigiSense DT models*
- RA91 Wall/ corner swivel for DigiSense DT models*
- *Not applicable for Pet Models
Spécifications Techniques
- EN50131 Security Grade 2: Relevant for all DigiSense models
- Coverage Range: 15m x 15m (50’x50’) for DT, DT Quad, DT “OR” Logic and PIR and QUAD models, 12m x 12m (40’ x 40’) for DT Pet and PIR Pet models
- Installation height: 2.4m (7’10”) for DT Pet and PIR Pet models, 2-2.7m (6’7”-9’) for DT & DT QUAD, DT “OR” Logic and PIR and Quad models
- Detection Logic: MW and PIR for DT &DT QUAD and DT Pet models, PIR for PIR & QUAD and PIR Pet and Selectable: MW or PIR , MW and PIR for DT “OR” Logic
- Creep Zone: Not included in PIR & QUAD and PIR Pet versions
- Anti-masking: in DT “OR” Logic model, using MW Channel
- Pet Friendly with VPT: In DT Pet(34kg/ 35lb) and PIR Pet (32kg/ 70lb)
- Swivel: Not applicable for DT Pet and PIR Pet models
- Microprocessor based Digital Signal Processing: Not included in PIR & QUAD
- Built-in EOL Resistors: Double EOL for DT and DT QUAD, DT Pet, PIR & Quad, Triple EOL for DT “OR” Logic, N/A in PIR Pet model
- Anti-fluorescent interface signal processing: Not included in PIR & QUAD, PIR Pet models
- Optional Corridor and Curtain lenses: N/A in DT Pet and PIR pet models
- Operating Voltage: 9 to 16 VDC in all models
- Optical Filtering: White light protection, pigmented lens
- Operating Temperature: -20°C to 55°C (-4°F to 131°F)
- Dimensions: 106 x 60 x 47mm (4.17” x 2.36” x 1.85”)
